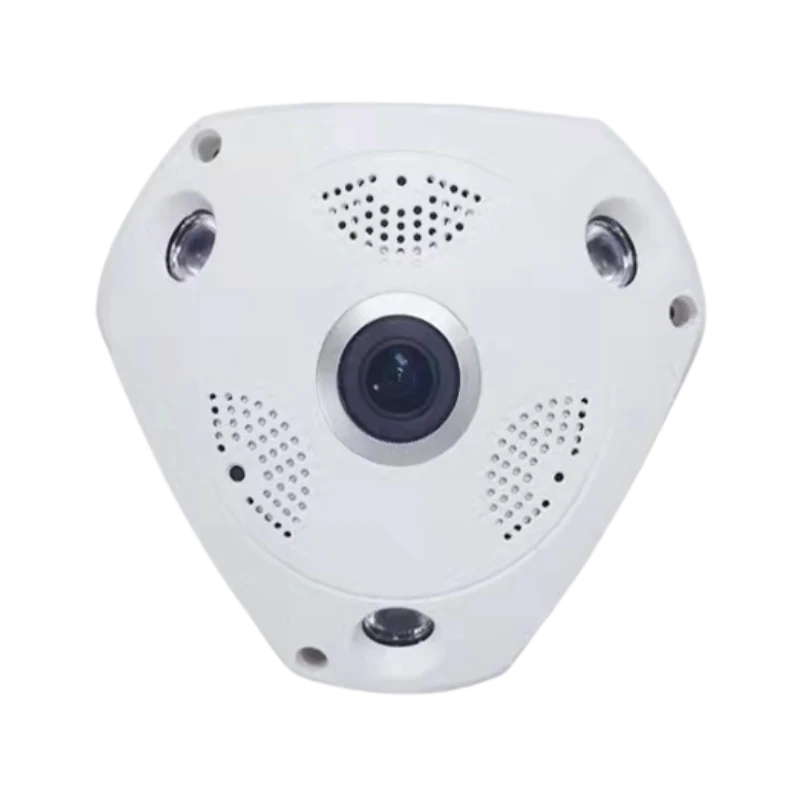

AI People Counting Camera For Construction Safety Management
The AIPC-HT-04 is an AI-powered people counting camera designed for high-risk and high-traffic environments such as construction sites and elevators. With built-in AI personnel counting algorithms, the camera accurately identifies the number of people in real time and triggers overload alarms through mobile and PC management platforms, helping operators prevent safety incidents before they occur.

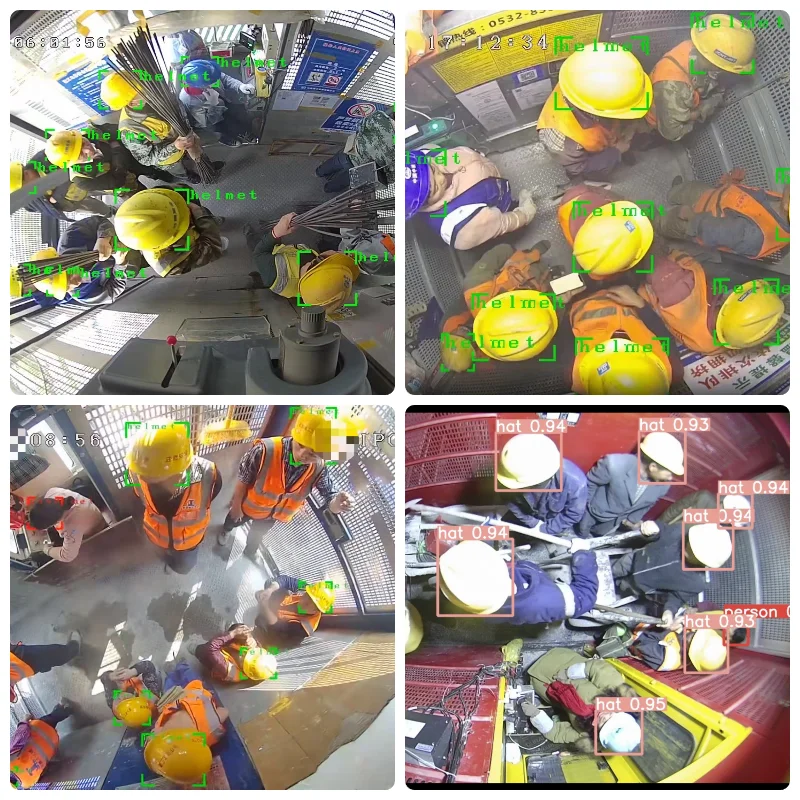

Safety Helmet Recognition with Real-Time Alarm
This people counting camera supports intelligent safety helmet detection. When a person enters the monitoring area without wearing a helmet, the system can immediately trigger a real-time voice alarm. This function is especially suitable for construction site elevators, cargo lifts, and controlled access entrances where compliance with safety regulations is mandatory.
1080P Fisheye Lens with No Blind Spots
Equipped with a 1.2mm high-definition fisheye lens and a 1/2.8″ CMOS sensor, the camera delivers 1080P (200W pixels) video with a wide viewing angle. The fisheye design ensures full area coverage with no blind spots, reducing the number of cameras required per site and lowering overall deployment costs.
Infrared Night Vision and AOV 24/7 Monitoring
The camera supports infrared fill light and night vision for stable performance in low-light conditions. With AOV (Always On Video) capability, it provides 24/7 continuous video recording, ensuring uninterrupted monitoring for safety supervision and incident review.
Seamless Integration and Remote Management
The AIPC-HT-04 people counting camera supports ONVIF, GB-T/28181-2016, and HK protocols, making it compatible with Hikvision video recorders and Firestone Cloud platforms. Users can remotely browse live video and receive alarm data via cloud systems, enabling centralized and efficient site management.
Technical Specifications
| Item | Specification |
|---|---|
| Model | AIPC-HT-04 |
| Resolution | 200W pixels (1080P) |
| Lens | 1.2mm fisheye |
| Sensor | 1/2.8 inch CMOS |
| Night Vision | Infrared night vision |
| Recording Mode | PIR, AOV (24/7 continuous recording) |
| Video Compression | H.265 / H.264 |
| Protocols | ONVIF, GB-T/28181-2016, HK |
| Alarm Functions | People counting overload alarm, safety helmet alarm, real-time voice alarm |
| Power Supply | DC 12V–24V |
| Power Consumption | < 4.5W |
| Waterproof Rating | IP66 |
Typical Application Scenarios
This people counting camera is widely used in:
- Construction site elevators
- Construction site cargo elevators
- Passenger elevators
- Access control entrances
- Restricted or high-risk work areas
It contributes directly to safer production environments by combining people counting, helmet compliance checks, and real-time alarms.
