Description

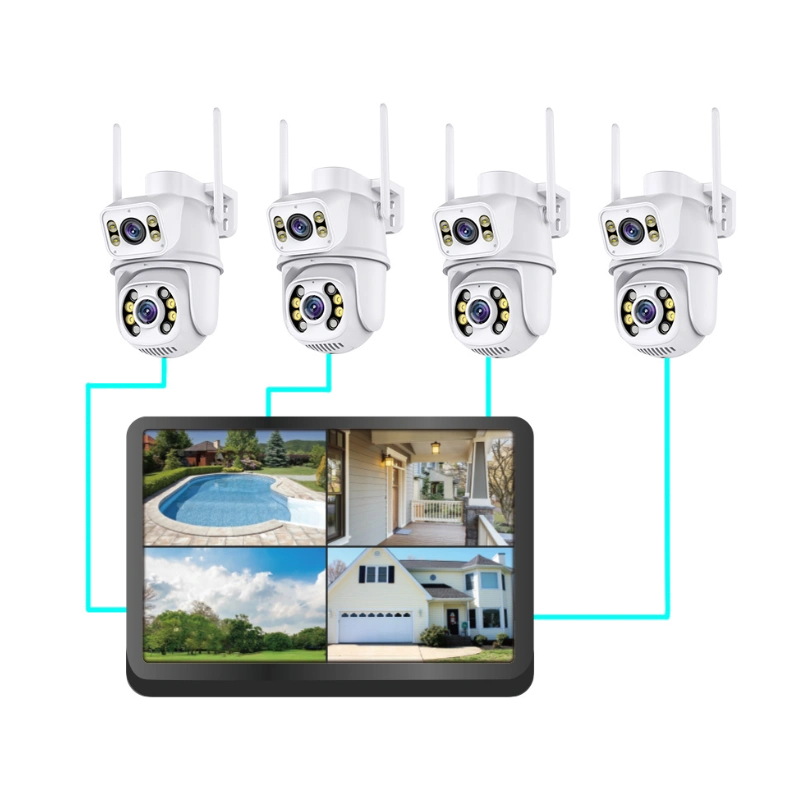

The iCSee CCTV Camera Kit integrates the A28 dual-lens security cameras with a powerful BNVR9208VT-SUWB NVR to deliver a complete monitoring solution for warehouses, shops, factories, and home security projects.
A28 Dual-Lens Camera (Brief Overview)

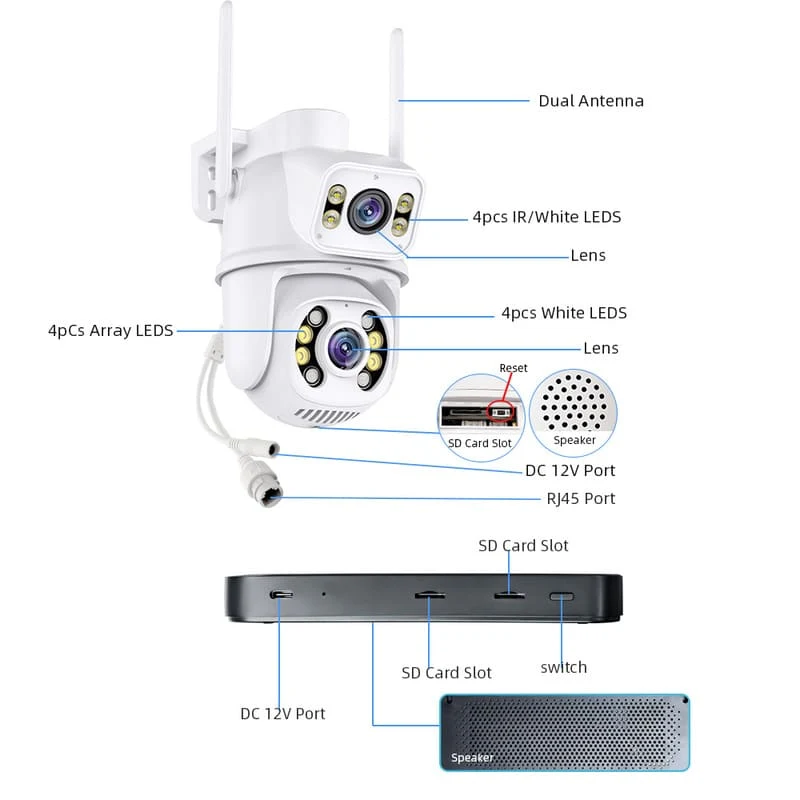

Each A28 camera combines a 3MP bullet lens and a 3MP PTZ lens, producing a 6MP stitched image with human detection, tracking, dual-light night vision, ONVIF support, wired/wireless connection, and H.264AI compression.
👉 To view the full A28 camera product details, please visit: iCSee A28 Dual Lens WiFi Camera
10.1” Touchscreen NVR for Efficient Multi-Camera Management
The BNVR9208VT-SUWB NVR features a built-in 10.1-inch TFT-LCD touch display, ideal for real-time local monitoring and rapid configuration. It supports 4-channel 4K or 8-channel 5MP input, making it suitable for multi-camera deployment in B2B projects.
Large-Capacity Storage Designed for Long Recording Cycles
The NVR includes dual TF card slots (each up to 256GB) and one M.2 SATA slot supporting up to 2TB, ensuring long-duration recording for retail stores, offices, and remote surveillance sites. Cloud storage is also supported to enhance backup reliability.
H.265 Compression & Dual-Band WiFi AX for Stable Transmission
With H.265 video encoding (0.1Mbps–8Mbps), storage efficiency is maximized while maintaining high-definition playback. The NVR is equipped with IEEE 802.11.AX, compatible with 2.4GHz and 5GHz bands.
- WiFi1 connects to the router
- WiFi2 connects to the wireless cameras
This architecture ensures stable image transmission even in environments with multiple wireless devices.
Reliable Performance for Continuous Operation
The NVR operates under -10°C to 60°C and up to 90% humidity, suitable for both indoor commercial areas and complex engineering installations. Power consumption stays low at 5W MAX, making it ideal for long-term deployments.
