In today’s tech-driven world, solar energy has become a cornerstone for powering electronics, from everyday gadgets to advanced security devices. Understanding how do solar panels work is no longer just for engineers—it’s essential for anyone exploring sustainable power solutions. Solar panels capture sunlight and convert it into electricity, providing a clean, reliable energy source for devices in homes, remote locations, and even outdoor security systems.
By learning the fundamentals of solar power, you’ll gain insight into how small modules keep solar security cameras running day and night without relying on traditional wiring. This guide breaks down the science and components behind solar panels, showing how sunlight transforms into usable electricity for modern technology.
What Are Solar Panels?
Solar panels are flat devices that turn sunlight into electricity you can use. People also call them photovoltaic (PV) modules. Each panel holds many solar cells connected together. These cells are made from silicon, a semiconductor material. They catch sunlight and create direct current (DC) power. This happens through an electronic process. Light particles called photons trigger this process.
A solar panel has more layers than you might think. The top has tempered glass that protects the cells from weather. Below that sits an anti-reflective coating that helps absorb more light. The photovoltaic cells do the actual work of converting energy. A backsheet provides electrical insulation. An aluminum frame holds everything together for mounting.
Typical Applications of Solar Panels
Solar panels power homes and tiny gadgets alike. Rooftop installations are what most people see. They create electricity for household needs. Homeowners can sell extra power back to utility companies through net metering programs.(nahb.org)
Large solar farms spread thousands of panels across acres of land. They feed power straight into the electrical grid. Smaller panels handle different jobs. They power calculators, watches, and portable phone chargers. Thin-film technology works great for these uses.

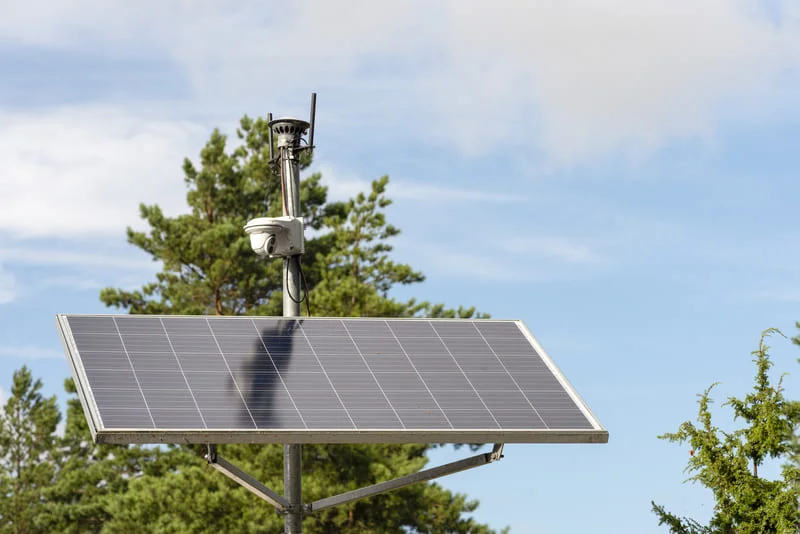

A practical example: Solar-powered security cameras from Arlo and Ring use small 5-10 watt PV modules. These charge built-in batteries. The weatherproof panels catch daytime sunlight. This powers motion detection, night vision, and video recording. They work great for remote spots, outdoor monitoring, or places with spotty electrical access. You skip the hassle of running wires. No need to keep replacing batteries. They work well even in shade.
Solar panels do more than power consumer products. They run agricultural water pumps. They light up streets with no grid connection. NASA uses high-efficiency panels for satellites in space. The harsh space environment puts them to the test.
Understanding Solar Panel Components
A solar panel consists of six engineered layers that work together to capture light and generate power. Each component plays a precise role—from converting photons into electricity to protecting the system from harsh outdoor conditions. Here’s a condensed look inside.
Solar Cells: The Power Generators
Solar cells are 0.1 mm silicon wafers that convert sunlight into DC electricity via the photovoltaic effect. P-type uses boron; N-type uses phosphorus. Technologies include monocrystalline (22% efficiency), polycrystalline (15–17%), thin-film (10–13%), plus advanced PERC, TOPCon, HJT, and IBC designs. N-type resists light degradation and performs better in heat and low light. Typical modules use 60–72 cells (or 120–144 half-cells) wired in series for 30–40 V output.
Glass Layer: Front Protection
The top layer uses 3.0–4.0 mm low-iron tempered glass—four times stronger than standard glass and tested to survive 25 mm hail at 27 m/s. Anti-reflective coatings reduce reflection losses by ~4% and improve transmittance to 91.5–93.5%. They also reflect infrared above 1200 nm to reduce heat. Bifacial panels use thinner dual-glass (1.6–2.0 mm) for better flatness. Tempered glass adds most of the module’s weight but shatters into safe fragments if damaged.
EVA Film: The Protective Encapsulant
EVA film encapsulates solar cells between the glass and back sheet during lamination. Its polymer structure (40–70% vinyl acetate) cushions cells and blocks moisture, dust, and vibration. POE offers stronger hydrolysis and PID resistance, ideal for N-type and dual-glass modules, while EPE blends EVA and POE for balanced durability. Proper cross-linking prevents yellowing and acetic acid formation, both of which can corrode ribbons and reduce long-term output.
Back Sheet: Rear Barrier
The back sheet seals the module’s rear side with multilayer PP, PET, or PVF structures. The outer layer resists UV, the PET core adds strength, and the inner layer ensures adhesion. White back sheets boost efficiency by reflecting light, black improves aesthetics, and transparent versions power bifacial modules. Dual-glass designs replace the back sheet entirely, improving moisture blocking, corrosion protection, fire safety, and extending warranties up to 30 years.
Aluminum Frame: Structural Support
Extruded anodized aluminum forms a rigid perimeter that protects panel edges and simplifies installation. It resists corrosion, supports roof or rack mounting, and creates airflow beneath the panel to control heat. Frames withstand strong winds, heavy snow loads, and transportation stress. Corner joining methods—screws, pressure joints, or clamps—vary by strength requirement. Aluminum is favored over steel for its balance of durability and lightweight performance.
Junction Box: Electrical Hub
Mounted on the back, the junction box houses bypass diodes that allow current to flow around shaded cell strings, preventing hotspots and power loss. IP65–IP68 ratings shield internal components from moisture, dust, and UV. MC4 connectors with tinned copper cables ensure low-resistance wiring. Some modern boxes integrate smart monitoring or rapid-shutdown functions. Quality heat management extends diode and overall module lifespan well beyond 25 years.
Science Behind Solar Energy
When light strikes a solar panel, it sets off the photovoltaic effect—a process first observed by Edmond Becquerel in 1839. Certain semiconductor materials generate voltage when exposed to light. These materials conduct electricity better than insulators but not as well as metals, making them ideal for controlled electron movement.
The Photovoltaic Effect Explained
Semiconductors contain electrons in two energy levels: the valence band and the conduction band. A bandgap separates them. When a photon with enough energy hits the surface, it transfers energy to an electron, pushing it into the conduction band and leaving behind a “hole.” These electron–hole pairs form mobile charge carriers.
A built-in electric field at the p-n junction separates these carriers. Electrons move toward the n-type layer, while holes migrate to the p-type layer. Their movement creates electric current that flows into external circuits.
Not all photons produce useful power. Low-energy photons pass through, while high-energy photons generate heat. Typical panels convert 15–22% of sunlight into electricity; the rest becomes heat or reflected light. The semiconductor’s bandgap determines which wavelengths get absorbed. Silicon’s 1.1 eV bandgap aligns well with visible and near-infrared light, capturing a large portion of the solar spectrum with manageable thermal losses.
Why Silicon Dominates Solar Manufacturing
Silicon powers about 95% of modern solar modules. Its dominance comes from abundant global supply—silicon is Earth’s second most common element—keeping material costs low. Existing semiconductor manufacturing infrastructure further reduces production expense.
Silicon also offers excellent electronic control. Phosphorus doping creates n-type silicon; boron forms p-type. Together they produce the p-n junction that separates charge carriers efficiently.
Competing materials have drawbacks. Gallium arsenide can exceed 29% efficiency but is costly and toxic. Cadmium telluride is cheaper yet achieves <18% commercial efficiency. In contrast, monocrystalline silicon reaches 18–22% efficiency with safe, recyclable materials.
Modern technologies like PERC, TOPCon, and HJT reduce recombination losses and push silicon performance toward 25% and beyond—ensuring its continued leadership in solar energy.
How Solar Panels Generate Electricity (Step-by-Step)
Solar panels convert sunlight into electricity through coordinated physical and electrical processes. Each stage transforms incoming radiation into stable power, allowing panels to deliver consistent output despite changing sunlight conditions.
Step 1: Sunlight Strikes the Solar Cells
Photons traveling from the sun hit the panel surface. The anti-reflective coating reduces reflection losses from 30% to ~4%, allowing more light into the silicon layer. Silicon’s 1.1 eV bandgap absorbs photons with matching or higher energy, while low-energy photons pass through and excess energy becomes heat. Visible light drives most conversion. Under standard test conditions, a panel receives 1000 W/m² at solar noon.
Step 2: Electrons Break Free and Create Current
Absorbed photons generate electron-hole pairs as electrons jump from the valence band to the conduction band. The p-n junction’s electric field immediately separates the charges—electrons move toward the n-type layer, holes toward the p-type layer—preventing recombination. Silver fingers and busbars collect electrons and route them through soldered ribbons. A single cell provides ~0.5–0.6 V; strings of 60 cells yield 30–36 V DC. Current output depends on light intensity and cell area, which is why shading sharply reduces performance.
Step 3: DC Power Flows Through Panel Wiring
Direct current exits the cells and enters the junction box, where bypass diodes protect against shading. A 60-cell panel uses three diodes to divide the array into 20-cell sections. If one section is shaded, the corresponding diode activates, preventing hotspots and allowing unaffected sections to continue producing power. MC4 connectors link panels into series or parallel strings. A typical home array reaches 240–400 V DC with 20–40 amps total current, carried through low-resistance heavy-gauge cables.
Step 4: Charge Controller Manages Battery Storage
In off-grid systems, a charge controller regulates power flow from panels to batteries. PWM controllers switch power on and off, while MPPT models track the panel’s maximum power point and convert excess voltage into additional current, achieving 95–98% efficiency. Controllers prevent overcharging, undercharging, and reverse current at night. Advanced MPPT units adjust output every few seconds as sunlight and temperature shift. Temperature compensation fine-tunes charging voltage—lower in heat, higher in cold—to protect battery lifespan.
Step 5: Batteries Store Energy for 24/7 Power
Batteries store energy as chemical potential. Lithium-ion delivers 150–200 Wh/kg and dominates modern systems; lead-acid offers 30–50 Wh/kg at lower cost. During discharge, chemical reactions reverse to supply DC power. Small loads—security cameras, LEDs, USB devices—use DC directly. Larger household appliances require AC, produced by inverters that convert DC at 85–95% efficiency. Total round-trip system efficiency reaches 70–85% after accounting for panel, battery, and inverter losses. Efficient charge cycles and minimizing unnecessary conversions improve overall system performance.
Factors That Affect Solar Panel Performance
Solar panel output changes with environment and installation choices, meaning a system rated at 10 kW in lab conditions may deliver only 6–7 kW on cloudy days. Knowing these factors helps predict real-world performance.
Sunlight Intensity & Location
Solar irradiance varies by geography, with equatorial regions receiving 5–6 kWh/m² daily while northern climates get 2–3 kWh/m². Peak sun hours show similar gaps—California averages 5.5 hours, while Seattle gets 2–3. Latitude drives seasonal differences, and clouds, pollution, or smog can cut irradiance by up to 60%.
Panel Orientation & Tilt
South-facing panels (north-facing in the Southern Hemisphere) capture the most sunlight. A tilt angle equal to local latitude boosts output, while seasonal adjustments add 3–7% yield. East–west setups lose 10–15% efficiency but extend production hours, and tracking systems increase annual energy by 15–30%.
Temperature Effects
Heat reduces voltage and efficiency, with a loss of 0.3–0.5% per °C above 25°C. Panels in summer can reach 64°C and lose significant output, while cold weather can raise performance by 10–15%. Good airflow, elevated mounting, and thin-film materials improve heat tolerance.
Shading Impact
Even minor shading can reduce system output by 50–100% due to series wiring effects. Bypass diodes, optimizers, and microinverters limit losses, while proper site planning prevents long-term shading issues.
Dust, Dirt & Maintenance
Soiling can cut output by 30–60%, especially in deserts. Rain helps but cannot remove all deposits, while hydrophobic coatings and robotic cleaners maintain performance in harsh environments.
Weather & Seasons
Clouds, heat waves, snow, humidity, and storms all shift output. Cold, sunny days offer peak performance, while extreme weather accelerates long-term panel degradation by 0.5–1% per year.
How Solar Panels Store and Deliver Energy
Solar panels generate electricity but cannot store it. Energy storage requires rechargeable batteries, which save excess power during sunny hours and release it at night or during low-light periods. A complete system includes panels, a charge controller to manage energy flow, and an inverter that converts stored DC power into AC for household use.
Rechargeable Batteries: The Energy Storage Tank
Batteries store solar energy by converting electrical energy into chemical energy during charging and reversing the process during discharge. Small devices use AA/AAA cells, while home systems rely on wall-mounted battery units measured in kilowatt-hours (kWh).
Common battery types:
- Lead-acid: Low cost, 3–5 year life, 50% usable capacity
- Lithium-ion: High efficiency, 10–15 year life, 80–90% usable capacity
- LiFePO₄: Best safety, long cycle life, strong temperature tolerance
A typical 13.5 kWh home battery powers essential loads for several hours, depending on usage. Appliances like refrigerators (150–200 W), LED lights (10–15 W), and laptops (45–90 W) drain stored energy at different rates. Battery lifespan depends on cycle count: lithium-ion units handle 4,000–6,000 cycles, while lead-acid batteries manage 500–1,000.
Charge Controllers: The Traffic Manager
Charge controllers regulate energy between panels and batteries, preventing overcharging and blocking nighttime reverse current.
- PWM controllers: Simple and low-cost but waste excess voltage; best for small systems.
- MPPT controllers: Convert surplus voltage into extra current, delivering 20–30% more energy—ideal for larger or mismatched-voltage setups.
Controllers use bulk, absorption, and float stages to optimize charging, with temperature adjustments to protect battery health.
Power Delivery Around the Clock
During the day, solar power runs active loads first, then charges batteries; extra energy may feed the grid. At night or in cloudy conditions, the system automatically switches to battery power. Smart inverters manage discharge based on grid status, electricity rates, and user preferences. Depth-of-discharge limits protect battery lifespan, ensuring reliable performance until solar charging resumes the next day.
Q&A Related to How Solar Panels Work
1. Do solar panels work on cloudy days?
– Yes, solar panels do work on cloudy days, though their efficiency is significantly reduced compared to clear, sunny conditions. They generate electricity from diffuse or indirect sunlight that penetrates through clouds, rather than relying solely on direct rays. On overcast days, panels typically produce 10-25% of their rated output, depending on cloud density and panel type.
2. Do solar panels work at night?
– No, standard solar panels do not produce meaningful electricity at night because they require visible light to generate power through the photovoltaic effect. They rely on photons from sunlight (or other light sources) to excite electrons, and ambient night light like moonlight or streetlights provides negligible energy—often less than 0.1% of daytime output. However, homes with solar installations can still access power at night via stored energy in batteries, net metering credits from excess daytime production fed back to the grid, or direct grid draw.
3. Do solar panels need direct sunlight?
– No, solar panels do not strictly need direct sunlight to function; they can generate electricity from indirect or diffuse light, such as on cloudy days or in shaded areas, though output is lower. Direct sunlight optimizes performance, allowing panels to reach their rated wattage (e.g., 400-460W for modern residential models), but even reflected or scattered light enables production at 10-50% efficiency. Panels start generating shortly after sunrise, and artificial light can work in theory but is impractical due to lower intensity. For best results, aim for 4-6 hours of direct sun daily, though systems in partially shaded spots can still be viable with proper design, like using microinverters to minimize shade impact. Factors like panel orientation, tilt, and location influence how much indirect light is captured, making solar feasible in less sunny climates.
4. How much power does a solar panel produce?
– The power output of a solar panel varies based on size, efficiency, sunlight exposure, location, and weather, but a typical residential panel in 2025 produces 250-460 watts (W) per hour under direct sunlight (standard test conditions: 1,000 W/m² irradiance at 25°C). Daily energy production averages 1.6-2.5 kilowatt-hours (kWh) per panel, assuming 4-6 peak sun hours, while annually it might total 400-600 kWh depending on local insolation.
5. Do solar panels work in winter?
– Yes, solar panels work effectively in winter, often with higher efficiency due to colder temperatures reducing heat-related losses (panels perform best below 25°C). However, shorter daylight hours and lower sun angles reduce total output—typically 50-70% of summer levels—while snow can temporarily block light but usually melts quickly due to panel tilt and dark surfaces absorbing heat.
Conclusion
Solar panels are innovative devices that capture sunlight and convert it into electricity, enabling a wide range of applications from home energy systems to small off-grid electronics. By understanding how do solar panels work, you gain insight into the physics, components, and design principles that make solar energy reliable and efficient. Solar cells, tempered glass, encapsulants, and junction boxes all work together to transform sunlight into usable power, while batteries and charge controllers ensure consistent energy supply day and night.
For anyone exploring off-grid devices, particularly outdoor or remote electronics like security cameras, knowing the basics of solar energy is essential. Proper system design, panel placement, and energy storage can significantly enhance performance and reduce maintenance, ensuring your devices operate effectively even without a constant grid connection.
