Choosing between CCTV vs IP camera systems impacts your security’s effectiveness, cost, and flexibility. The right choice ensures clear footage, scalable coverage, and features matching your home or business needs. This blog clarifies key differences (image quality, cost, security, smart features) to help you confidently select the ideal system—balancing budget and future-proofing.
Introduction of CCTV and IP Camera

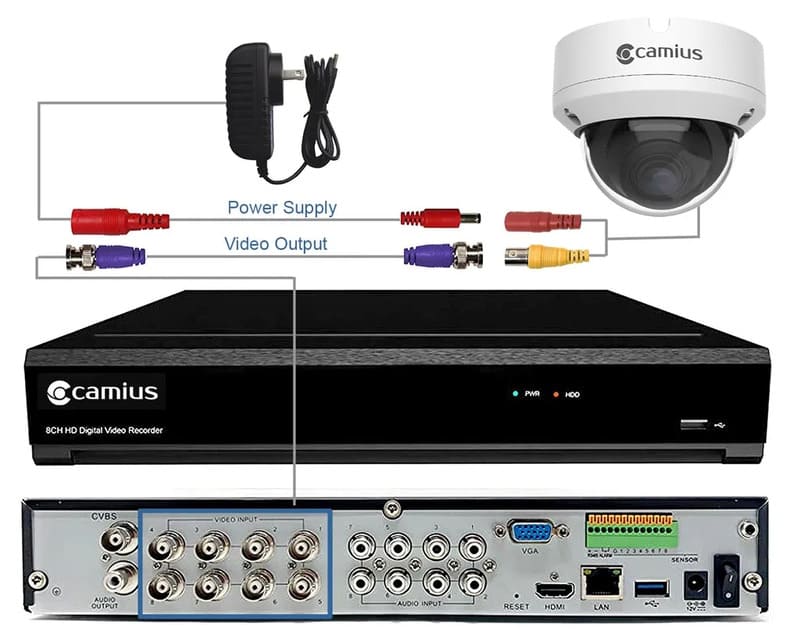

CCTV cameras, also know as analog systems. They use coaxial cables to send video, with signals go to a Digital Video Recorder (DVR). The DVR does two jobs: it saves the video and lets you watch it live. The important thing to know is that it’s a “closed circuit.” This means you can only see the footage on-site, as it is not available over the public internet.

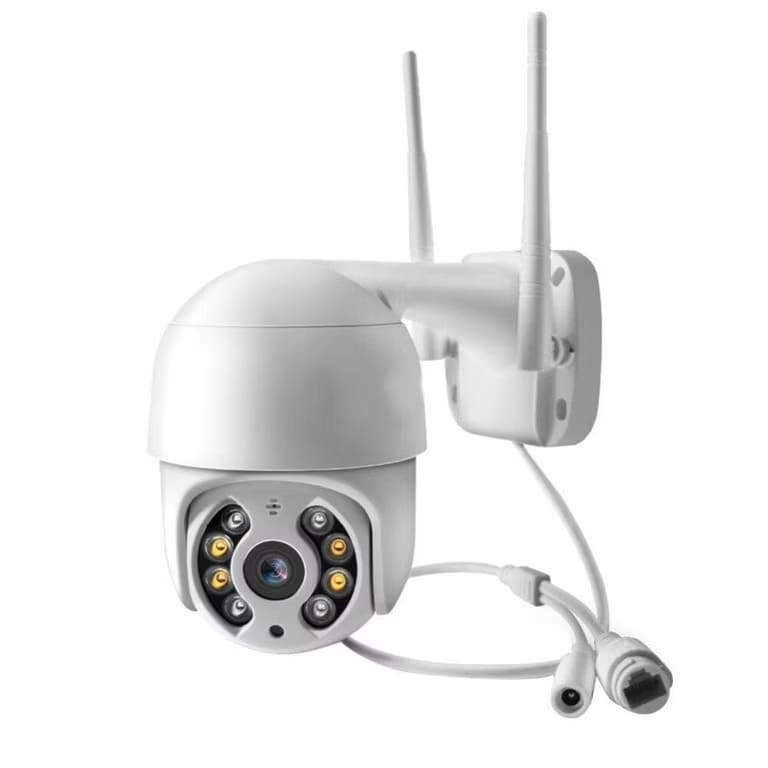

IP cameras, on the other hand, are digital. They send video data over a computer network. For this, you can use Ethernet cables, Wi-Fi, or even a cell connection. You can record the video to a Network Video Recorder (NVR), or upload it to cloud storage for a secure backup. The big plus here is remote access. This setup lets you view live or recorded clips from any location where you have network access.
5 Key Differences Between CCTV vs IP Cameras
CCTV vs IP Camera: Key Differences in Signal Transmission and Connectivity Options
The main difference between CCTV and IP cameras is how they send and connect video.

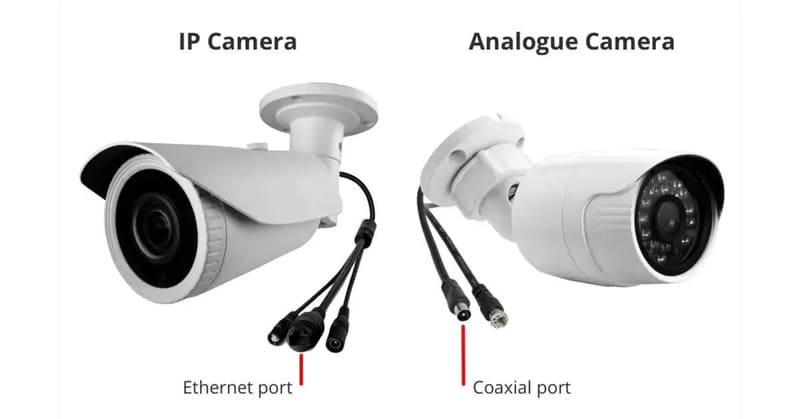

Signal Transmission: Analog vs. Digital
CCTV systems send video using analog signals. The video travels as an analog signal through a coaxial cable. A DVR then changes it to a digital format so you can store and watch it. This setup is less flexible because it needs its own specific wires.
IP cameras work in a modern way. They change video into digital packets inside the camera. They send these packets over a computer network. This improves video quality and allows the cameras to plug into your existing network. This supports useful features like watching from your phone and cloud backup.
Connectivity Options and Installation Flexibility
CCTV (Analog) system needs coaxial cabling, this can be a hassle for large properties. Coax cables have length limits. After a few hundred meters, the video quality starts to get worse.
IP Cameras support multiple ways to connect. You can use Ethernet cables with Power over Ethernet (PoE), it sends power and video through one cable for up to 100 meters without extra gear. You can also set up IP cameras without wires, which makes them much easier to install in large or tricky areas, and you avoid the cable problems you get with analog systems.
These differences in signal and connection affect more than just the installation. They give IP cameras advanced abilities. I recommend them for anyone who wants to view footage from anywhere or expand their system easily in the future.
Image Quality and Smart Features: CCTV vs IP Camera
Image Resolution and Clarity
IP cameras give you higher resolution video. They can go up to 4K or even higher. This is a big plus for seeing faces or license plates. That extra detail gives you clear footage when it matters most.
CCTV (Analog) cameras max out at 1080p resolution. In my opinion, this resolution is okay for basic viewing. You will not get sharp details in critical situations.
Advanced Functions and Integration
IP cameras have advanced features, include motion detection, facial recognition, and video analytics. They can also connect to other smart devices. For example, you can get an alert on your phone when they spot movement. You do not get this kind of smart automation with older analog CCTV.
CCTV cameras are for basic video recording and watching, they usually lack smart features. They do not connect well with mobile apps or other smart home gadgets.
Cost Comparison: CCTV vs IP Camera
For many people, the choice between CCTV and IP cameras comes down to price. Let me give you a simple cost breakdown.
Initial Equipment Costs
CCTV Cameras cost between $50 and $150 each, which makes CCTV a great choice if you have a tight budget.
IP Cameras will cost you $100 to $300 each. They cost more at first, but I believe they pay off over time.
Scalability and Expansion Costs
Expanding a CCTV setup can get expensive. Each new group of cameras needs a new DVR. DVRs have a set number of channels, like 4, 8, 16, or 32. Once you fill up your DVR, you have to buy another one. Your costs can go up fast this way.
Adding more IP cameras is much easier. You just connect new cameras to open LAN ports on your network or NVR. It helps you grow your system without needing major new hardware. This can lower what you spend in total over the years.
Installation Complexity and Labor Costs
Installing CCTV takes a lot of work. Each camera needs its own coaxial wire running back to the DVR. Running these wires across large areas or through multiple floors makes the job more expensive.
IP Camera installation is simpler. If you choose Power over Ethernet (PoE), it means one Ethernet cable gives the camera both power and a data connection. This setup reduces the amount of wiring. It also cuts down on installation time and labor costs, a point confirmed by industry sources like Pelco.
Final thoughts on cost: I suggest CCTV for smaller jobs or if you have a strict budget. Just be ready for extra costs if you plan to add more cameras later. IP cameras is higher on the initial cost, I would recommend them for the long term. Upgrades are easier, and future costs are lower, which is a big plus if you think your system will grow.
Security Comparison: CCTV vs IP Camera
When compare CCTV and IP cameras, security is a huge factor and each system handles it very differently.
Physical and Network Security
CCTV (Analog) Systems: These old-school closed-circuit systems do not connect to the public internet. This keeps your video footage safe from online hackers. But they are not totally risk-free, if someone gets to the coaxial cables, they can tap into or mess with your video feed.
IP Cameras: IP cameras use digital signals to connect to your local network or the internet. They have built-in security like encryption to help protect your video data. The main risk is getting hacked if the setup isn’t done the right way. Common problems are weak passwords, old firmware, and open networks.
How to Improve Security With IP Cameras
Based on what security experts at Pro-Vigil and getsafeandsound.com say, here are a few things you should do:
- Always recommend using strong, unique passwords for each camera and your main system.
- Update camera firmware and system software often to close any security gaps.
- Set up a separate network for your cameras. This keeps them away from your main devices like computers and phones.
- Turn on encryption when you can to keep your footage private.
If you follow these tips, you’ll lower the chances of remote hacking and make your IP camera setup much safer.
To sum it up, CCTV provides security by being offline, but no system is perfect if cables are out in the open. IP cameras give you more advanced digital security, but they need a proper setup and you have to maintain them to stay safe from online threats.
CCTV or IP Camera: Suitability and Industry Trends
The right choice between CCTV and an IP camera depends on your needs. You should consider the size of your security project and how much you want to spend.
When CCTV Cameras Make Sense
CCTV cameras are a good fit for:
- Small businesses or homes: If you have basic security needs and a tight budget, CCTV systems are an affordable and simple solution.
- Setups that won’t expand: The analog system is simple. It works well if you do not plan to add more cameras in the future.
Who Should Choose IP Cameras?
I believe IP cameras are a better choice in these situations:
- If you want advanced security features: These systems give you remote access, clearer video, and analytics.
- Large corporations or public spaces: IP cameras are easy to scale up. If your security needs might grow, an IP setup gives you that freedom to add more cameras over time.
- For integration and modern features: Most new installations now use IP cameras. This is driven by the growth of AI, cloud storage, and remote viewing on mobile phones.
Industry Trends and Real-World Choices
Recent industry data shows a clear change:
- IP cameras are gaining more of the market, a trend highlighted by platforms like CCTV-outlet.
- For new security jobs, IP cameras becoming the standard. This is very true when smart technology and cloud storage are important.
- Brands like Pelco note that today’s businesses want remote management and smart analytics. These are areas where IP cameras perform very well.
I suggest you assess your budget, property size, and long-term goals. If you want a system that is ready for the future, I recommend investing in IP cameras. This allows you to use the latest advances in video surveillance.
CCTV(analog) systems offer simplicity and lower upfront costs, while IP cameras – digital solutions deliver superior resolution, remote access, and smart features like AI analytics. Choose CCTV for basic, budget-friendly setups. Opt for digital if you prioritize scalability, cloud storage, or mobile monitoring. Assess your property size, security needs, and future plans. Still unsure? Share your scenario below—we’ll help tailor your ideal system!
